Freight elevator

Freight elevators include machine room cargo elevators, machine room-free cargo elevators, explosion-proof cargo elevators, combined with cutting-edge elevator engineering technology, using a powerful drag system and highly reinforced mechanical structure design. It can operate normally in harsh environments.



safety: Only the beginning and no end

Therefore, we believe that safety is the first element throughout the entire life cycle of a product.


Frequency conversion asynchronous traction host is safe and energy-saving, high efficiency, low noise, small vibration, stable operation, good lubrication performance and superior performance.

The main component systems such as the traction system and the door system have undergone strict reliability tests to ensure that.

◆ An elevator runs reliably under long-term high-load conditions.

◆ The Anti-falling button is more sturdy and reliable, which can cope with improper use.

◆ Non-slip steel car bottom, durable.

◆ Optional high-strength polyurethane anti-collision protection plate, durable and environmentally friendly, reducing the loading and unloading of goods risk of damage to the car wall.

High-efficiency permanent magnet synchronous gearless traction machine

The rare earth material is selected and the coaxial transmission technology, digital frequency conversion technology and group computer combination control technology are fully integrated. The operating cost is small, the energy loss is low and energy can be saved by more than 33% compared with traditional technology.

High magnetic flux density electromagnetic structure high efficiency and low noise.

More reasonable force and more stable structure effectively alleviate the wear of the traction wire rope and prolong the service life of the bearing.

Large peak torque, strong overload capacity, smoother and more reliable operation.

Unique stator and rotor manufacturing process ensure low temperature rise and long service life of the motor.



Distributed Microprocessor Control Systems

The control system adopts a double 32-bit processor, with fast operation speed, accurate data processing and enhanced stability.


VVVF frequency conversion door machine system

To ensure the smooth and stable opening and closing of the ladder door, the self-learning door load detector improves the sensitivity of the ladder door switch, and monitors and automatically adjusts the switching speed of each floor to ensure safety and reliability.


Large opening distance

Multi-folding hall door and car door are used to achieve the maximum door opening width, which facilitates the entry and exit of large cargo.


Strong and sturdy

Made of high-strength profiles and specially reinforced car chassis durable.


Infrared light curtain protection

A light curtain protective barrier is formed at the entrance of the elevator and an infrared light curtain "protection net" covers the entire car door to ensure the safety of passengers and goods.


Humanized design

Equipped with a full-automatic collection selection function which can be operated with or without a driver. In addition, a "door opening delay" button is designed on the control box and the closing time can be flexibly adjusted on-site as needed to ensure ease in loading and unloading cargo.


Multiple door opening mode

In order to meet the different access requirements of customers, freight elevators have multiple doors opening methods,

such as one-way door opening, two-way through the door opening and right-angle door opening.

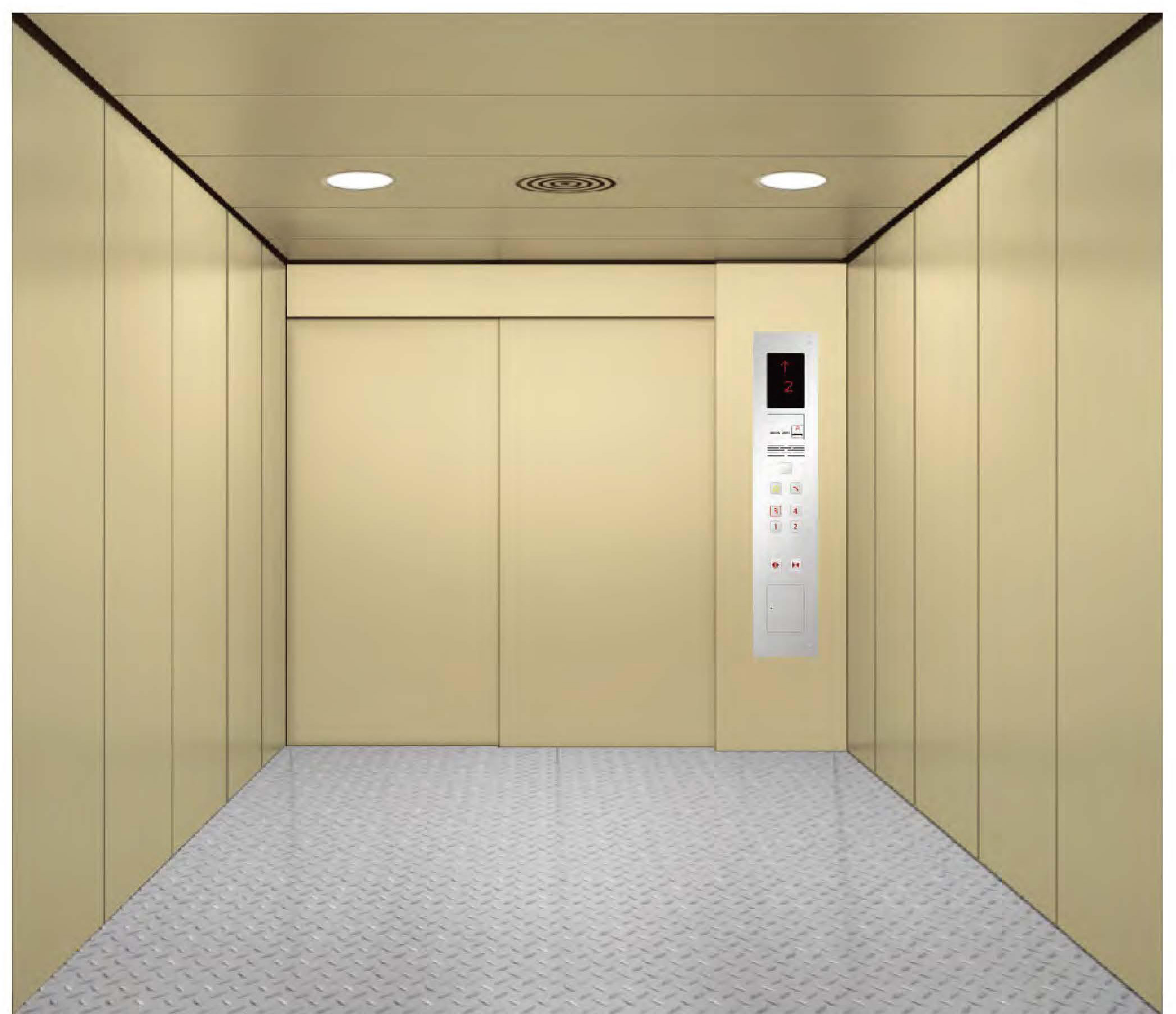

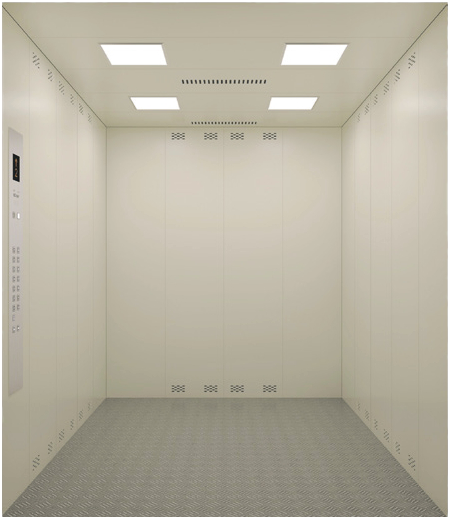

Car roof: painted steel plate
Car / Car door: painted steel
Lighting: LED
Door opening method: side opening
Floor: pattern steel

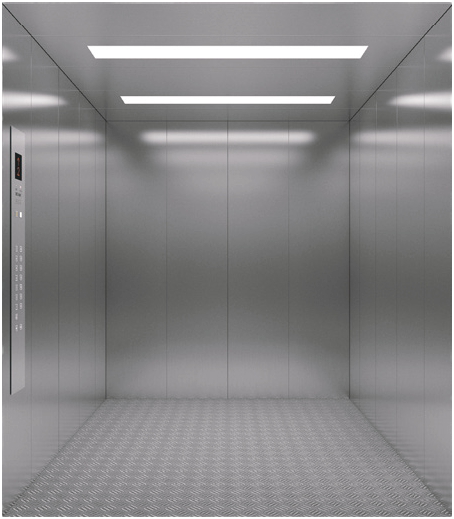

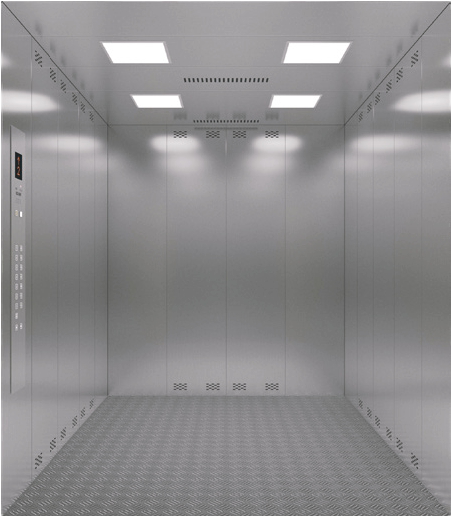

Car top: Hairline stainless steel
Car/car door: Hairline stainless steel
Lighting: LED
Door opening method: Double-fold door
Floor: pattern steel










Side opening (Stainless steel hairline optional)

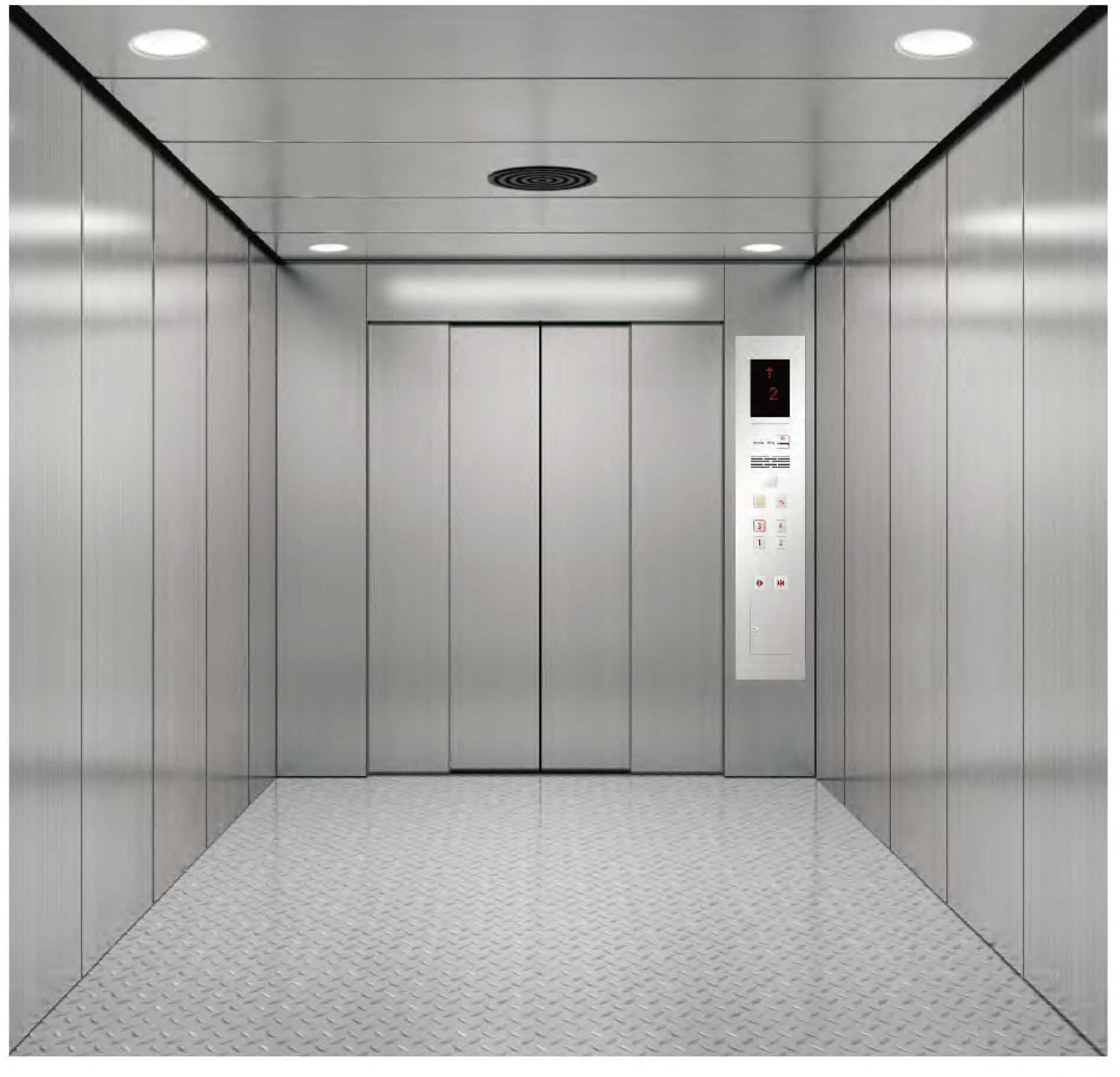

Center-opening & three folded type (Stainless steel hairline optional)


Side opening (Stainless steel hairline optional)

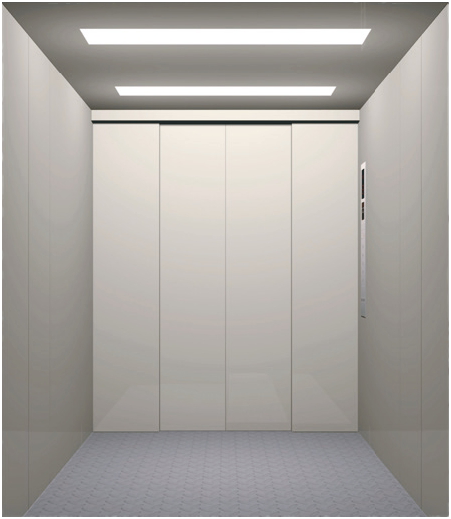

Center- opening & double-folded type (Stainless steel hairline optional)







Floor-ordinary pattern steel plate(standard)


Floor-Stainless steel pattern steel plate (optional)
